Epoch 650 encoded B-scan to CSV

Read the thickness list out of an Epoch 650 encoded B-scan .bsh file and download it as a spreadsheet. The file stays in this browser. Nothing is sent to Kuzer.

Upload a .bsh file, or drop it on the controls. This is the small binary file saved beside the instrument CSV. Use dummy data to load a sample scan.

End distance is optional. The .bsh does not store position. If you enter it, the points are spaced evenly from the start to that end. The start is only used in that case.

Sample profiles over 1 m. Warm marks thickness under the low line. Cool marks thickness over the high line.

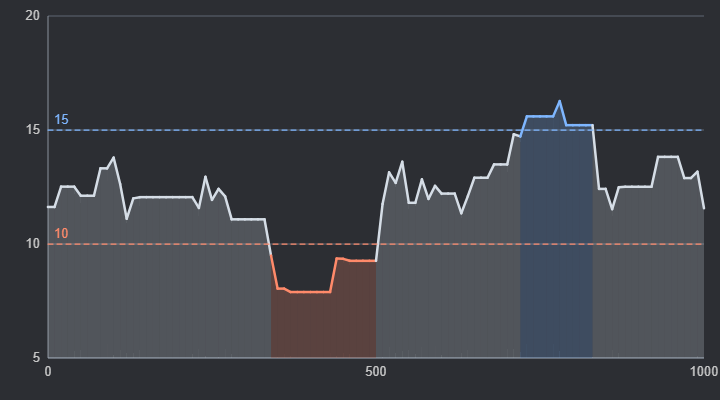

Sample chart over 1 m with one thin patch and one thick patch — Thin patch

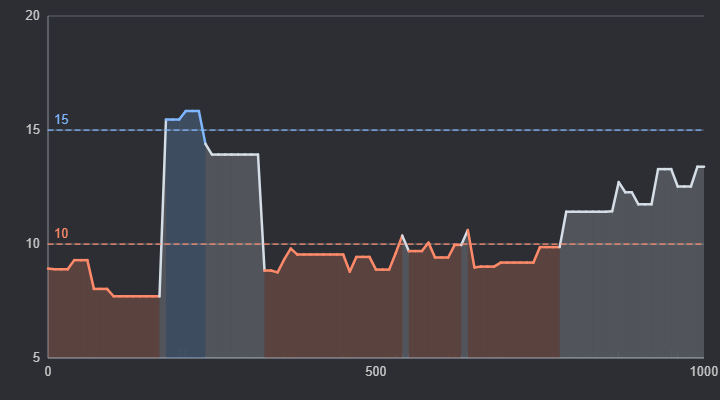

Sample chart over 1 m with a long thin run and a thick weld — Long thin run

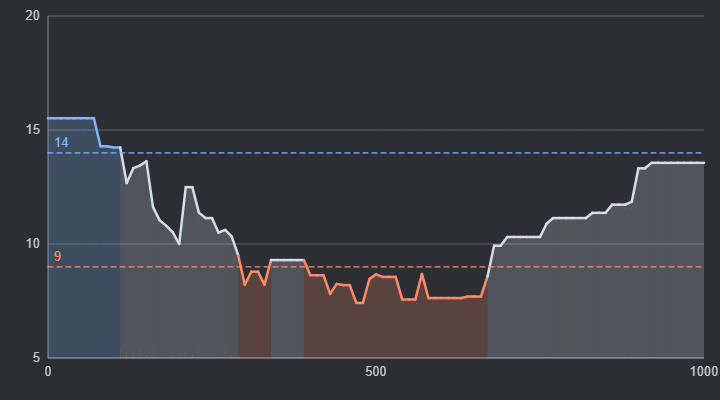

Sample chart over 1 m that thins through the middle of the scan — Mid-scan loss

Start (mm)

End distance (mm)

No file yet.
